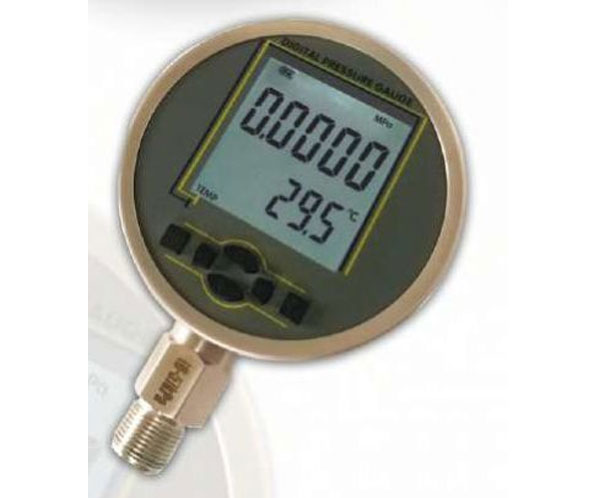

LDPG-01 Digital Reference Pressure Gauges

Business Type Manufacturer, Exporter, Supplier, Trader
Material 304 Stainless Steel.
Operating Temperature -10 To 50 °C.
Pressure Range -lto1, 1.6, 2.5, 4, 6, 10, …….. 1000Bar. -100, -60, -40, -25, -10, …….. 100KPa. 0 – 100 KPa…..1000 KPa(Absolut Pressure).



Categories: ,
Pressure Accuracy
0.2 %, , 0.1%, 0.05% Fs. (note: Special Accuracy Options Available for 0.025% Fs).
Drift
+0.1% FS per year.
Temperature Accuracy
+0.7 °c.
Compensation Temperature
0 to 40 °C.
Power:
03 units AA battery or USB Power
Battery Life
3600 Hours.
Sampling Rate
1-10 times/ Second.
Dial Diameter
105 mm.
Screw Thread
M20 *1.5 G1/4 or Customized.
Measuring Medium
Oil, Gas, Liquid(Non Corrosive).
Storage Condition :
Temperature : (-20 to 60°C) Humidity(0 to 95%).
Net weight :
260g.
Product accessory :

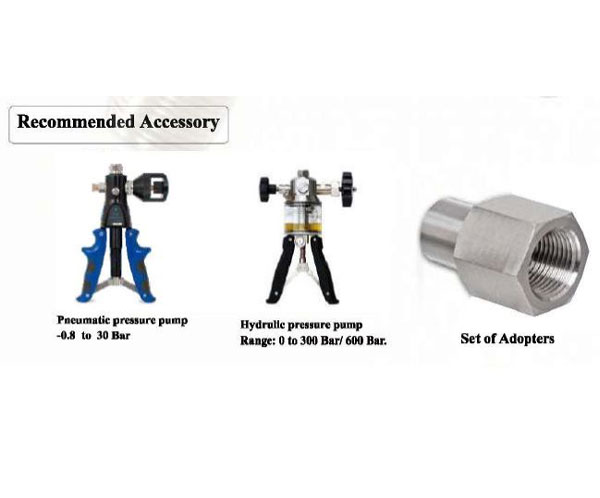

Power Cable, Carry box.

Special Features

1, Various accuracy options available, ranging from 0.2%, 0.1%, 0.05 % FS.

(Note: special accuracy option available for 0.025% FS)

2. Various pressure ranges available from -1 Bar to 1000 Bar (Various models cover intermediate ranges.

3. Simultaneous display of Pressure and temperature.

4. Display of maximum and minimum pressure.

5. Large LCD Screen, Size of 50mmX55mm.

6. Multiple units of pressure: Bar, mBar, kPa, PSI, MPa, Kgf/cm2, mmHg, mH20, Torr.

(Note: Some units may be fixed or not available based on pressure ranges.)

7, Resolution 4 Digit.
