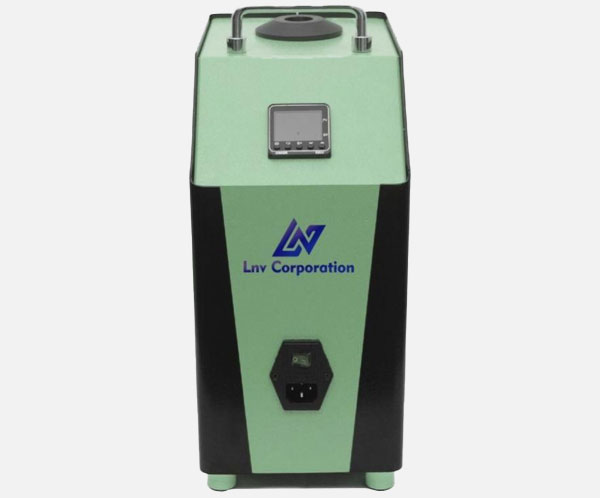

SUD-30X Cold Dry Block Temperature Calibrator

Business Type	Manufacturer, Exporter, Supplier, Trader
Model	SUD-30X
Control Range	-30 to 100 °C @ 25°C
Resolution	0.1 °C
Control Accuracy	£0.1°C
Thermal Stability	+0.01°C at -30°C, +0.02°C at 50°C, +0.04°C at 100°C
Thermal Uniformity (Radial)	+0.04°C at -30°C, ,+0.08°C at 50°C+0. 10°C at 100°C
Hysteresis	0.05 °C

Control Accuracy

£0.1°C

Thermal Stability

+0.01°C at -30°C, +0.02°C at 50°C, +0.04°C at 100°C

Thermal Uniformity (Radial)

+0.04°C at -30°C, ,+0.08°C at 50°C+0. 10°C at 100°C

Hysteresis

0.05 °C

Stabilization Time/settling time

10 minutes after set point is achieved.

Cooling Time

30 Min ( Ambient to -30°C) @25°C

Heating Time

15 Min (Ambient to 100 °C ) @25°C

Power Supply

230 V(AC), (50 Hz)

Power Consumption

300 Watt

Display

LCD, °C or °F user-selectable

Construction Size (H x W x D)

340(H) x 165(W) x 290(D) mm

Instrument Weight

Environmental operating conditions

0 °C to 50 °C, 0 % to 90 % RH (non-condensing)

Immersion (Well) Depth

120 mm

Insert Length

120 mm

Insert OD

22mm

Method of Control

Self tunned PID controller

Specifications valid in environmental conditions

5°C … 25°C
