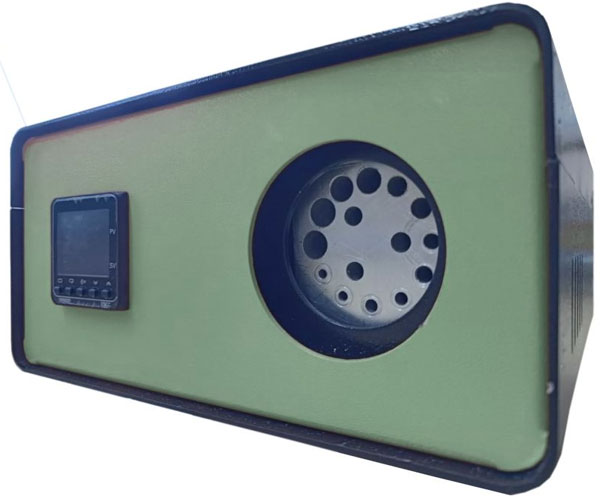

SUD-500 Mini Hot Dry Block Temperature Calibrators
SUD-500 Mini Hot Dry Block Temperature Calibrators
  1. SUD-500 Mini Hot Dry Block Temperature Calibrators
  2. SUD-500 Mini Hot Dry Block Temperature Calibrators

SUD-500 Mini Hot Dry Block Temperature Calibrators

Business Type Manufacturer, Exporter, Supplier, Trader
Model (SUD-500 Mini)
Control Range 50 to 500 °C @ 25°C
Resolution 0.1 °C
Control Accuracy +0.1°C
Thermal Stability +0.05°C at 50°C, +0.07°C at 250°C, +0.11°C at 500°C
Thermal Uniformity (Radial) +0.06°C at 50°C, +0.09°C at 250°C, + 0.16°C at 500°C
Hysteresis 0.05 °C
Categories: ,
Control Accuracy
+0.1°C
Thermal Stability
+0.05°C at 50°C, +0.07°C at 250°C, +0.11°C at 500°C
Thermal Uniformity (Radial)
+0.06°C at 50°C, +0.09°C at 250°C, + 0.16°C at 500°C
Hysteresis
0.05 °C
Stabilization Time/settling time
20 minutes after set point is achieved.
Cooling Time
30 Min ( 500 °C to 50°C) @25°C
Heating Time
15 Min (50°C to 500 °C ) @25°C
Power Supply
230 V(AC), (50 Hz)
Power Consumption
500 Watt
Display
LCD, °C or °F user-selectable
Construction Size (H x W x D)
120(H) x 235(W) x 250(D) mm
Instrument Weight
5.3 Kg
Environmental operating conditions
0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
Immersion (Thermal Block) Depth
80 mm
Thermal Block Length
120 mm
Thermal Block OD
60mm
Method of Control
Self tunned PID controller
Specifications valid in environmental conditions
5°C … 25°C
