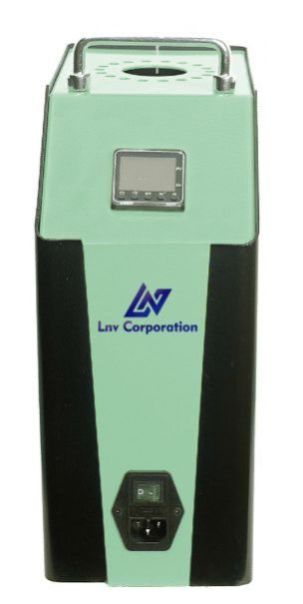

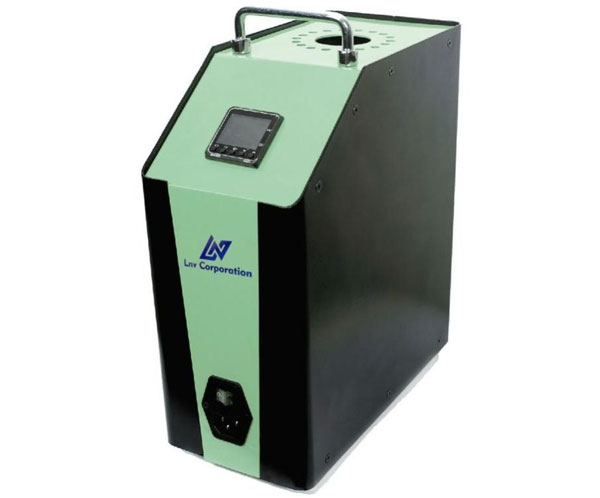

SUD-600 Hot Dry Block Temperature Calibrator

Business Type	Manufacturer, Exporter, Supplier, Trader
Model	SUD-600
Control Range	50 to 600 °C @ 25°C
Resolution	1°C
Control Accuracy	+ 0.5°C
Thermal Stability	+0.02°C at 50°C, +0.04°C at 300°C, +0.08°C at 600°C
Thermal Uniformity (Radial)	+0.05°C at 50°C, +0.09°C at 300°C, + 0.10°C at 600°C
Hysteresis	0.05 °C

Control Accuracy

+ 0.5°C

Thermal Stability

+0.02°C at 50°C, +0.04°C at 300°C, +0.08°C at 600°C

Thermal Uniformity (Radial)

+0.05°C at 50°C, +0.09°C at 300°C, + 0.10°C at 600°C

Hysteresis

0.05 °C

Stabilization Time/settling time

20 minutes after set point is achieved.

Cooling Time

60 Min ( 600 °C to 50°C) @25°C

Heating Time

15 Min (50°C to 600 °C ) @25°C

Power Supply

230 V(AC), (50 Hz)

Power Consumption

500 Watt

Display

LCD, °C or °F user-selectable

Construction Size (H x W x D)

320(H) x 145(W) x 290(D) mm

Instrument Weight

5.3 Kg

EnvironEnvironmental operating conditionsmental operating conditions

0 °C to 50 °C, 0 % to 90 % RH (non-condensing)

Immersion (Well) Depth

150 mm

Insert Length

145 mm

Insert OD

35mm

Method of Control

Self tunned PID controller

Specifications valid in environmental conditions

5°C … 25°C
