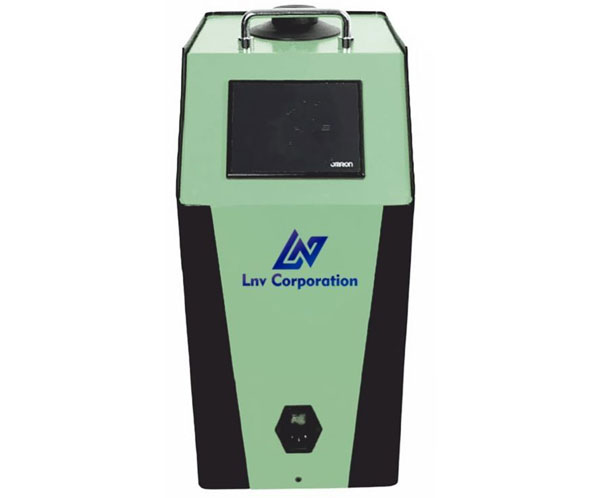

SUD-90X Ultra Cool Dry Block Portable Temperature Calibrator
SUD-90X Ultra Cool Dry Block Portable Temperature Calibrator
  1. SUD-90X Ultra Cool Dry Block Portable Temperature Calibrator
  2. SUD-90X Ultra Cool Dry Block Portable Temperature Calibrator

SUD-90X Ultra Cool Dry Block Portable Temperature Calibrator

Business Type Manufacturer, Exporter, Supplier, Trader
Model SUD-90X
Control Range -90 to 25 °C @ 25°C
Resolution 0.01 °C
Control Accuracy +0.1°C
Thermal Instability +0.020 °C at -95°C, +0.016 °C at -50°C, +0.011 °C at 25°C
Thermal Non – Uniformity (Radial) +0.070 °C at -90°C, +0.052 °C at -50°C, + 0.021°C at 25°C
Hysteresis 0.05°C
Categories: ,
Control Accuracy
+0.1°C
Thermal Instability
+0.020 °C at -95°C, +0.016 °C at -50°C, +0.011 °C at 25°C
Thermal Non – Uniformity (Radial)
+0.070 °C at -90°C, +0.052 °C at -50°C, + 0.021°C at 25°C
Hysteresis
0.05°C
Stabilization Time/settling time
10 minutes after set point is achieved.
Cooling Time
60 Min.( Ambient to -90°C ) @25°C
Heating Time
15 Min.( -90°C to Ambient) @25°C
Power Supply
230 V(AC), (50 Hz)
Power Consumption
300 Watt
Display
LCD, °C or °F user-selectable
Construction Size (H x W x D)
520(H) x 250(W) x 250(D) mm
Instrument Weight
10Kg
Environmental operating conditions
0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
Immersion (Well) Depth
120 mm
Insert Length
120 mm
Insert OD
28 mm
Method of Control
Self tunned PID controller
Specifications valid in environmental conditions
5°C …. 25°C

Wide Temperature Range (SUD-90X)

Offer a wide temperature Range from -90 to 25 °C

Lightweight, portable (SUD-90X)

Block is ideal for Industrial/ Laboratory field use. It only weights about 8 kg, and it is small enough to carry around

Accuracy and performance (SUD-90X)

is an easily portable unit that also provides excellent calibration accuracy with stability + 0.01 °C at -90°C.

Speed The (SUD-90X)

Extremely quick to reach various temperatures, i.e. it heats down Ambient temperature to -90 °C in 60 minutes.

This saves time and increases productivity
