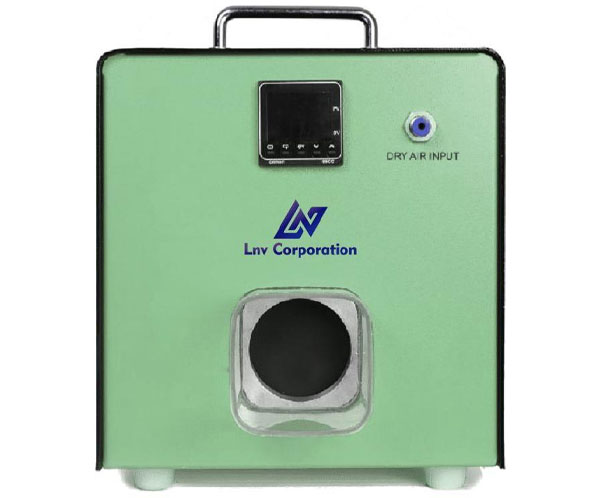

SUD-IR-20X IR Temperature Calibrator
SUD-IR-20X IR Temperature Calibrator
  1. SUD-IR-20X IR Temperature Calibrator
  2. SUD-IR-20X IR Temperature Calibrator

SUD-IR-20X IR Temperature Calibrator

Model SUD-IR-20X
Control Range -20 to 100 °C @ 25°C
Resolution 0.1 °C
Control Accuracy +0.1°C
Emissivity 0.95 + 0.01
Working emissivity Aria 50 mm diameter
Emissive area thermal stability +0.10°C at -20°C, +0.15°C at 0°C, +0.22°C at 100°C
Categories: ,
Control Accuracy
+0.1°C
Emissivity
0.95 + 0.01
Working emissivity Aria
50 mm diameter
Emissive area thermal stability
+0.10°C at -20°C, +0.15°C at 0°C, +0.22°C at 100°C
Emissive area thermal uniformity
+0.15°C at -20°C, +0.27°C at 0°C, +0.31°C at 100°C
Hysteresis
0.02 °C
Stabilization Time/settling time
10 minutes after set point is achieved.
Cooling Time
30 Min ( 100 °C to -20°C) @25°C
Heating Time
15 Min (-20°C to 100 °C ) @25°C
Power Supply
230 V(AC), (50 Hz)
Power Consumption
250 Watt
Display
LCD, °C or °F user-selectable
Construction Size (H x W x D)
320(H) x 145(W) x 290(D) mm
Instrument Weight
6 Kg
Environmental operating conditions
0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
Method of Control
Self tunned PID controller
Specifications valid in environmental conditions
5°C … 25°C
