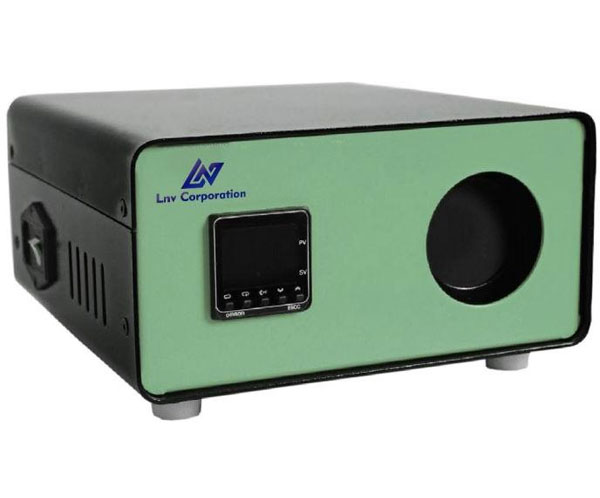

SUD-IR500 Hot Infrared Temperature Calibrator

Model	SUD-IR500
Control Range	50 to 500 °C @ 25°C
Resolution	0.1 °C
Control Accuracy	+0.1 °C
Thermal Stability	+0.06°C at 50°C, +0.08°C at 300°C, +0.11°C at 500°C
Thermal Uniformity (Radial)	+0.08°C at 50°C, +0.14°C at 300 °C, + 0.20°C at 500°C
Stabilization Time/settling time	20 minutes after set point is achieved.

Control Accuracy

+0.1 °C

Thermal Stability

+0.06°C at 50°C, +0.08°C at 300°C, +0.11°C at 500°C

Thermal Uniformity (Radial)

+0.08°C at 50°C, +0.14°C at 300 °C, + 0.20°C at 500°C

Stabilization Time/settling time

20 minutes after set point is achieved.

Heating Time

30 Min.( Room Temperature to 500 °C ) @25°C

Cooling Time

50 Min.(500 °C to Room Temperature) @25°C

Power Supply

230 V(AC), (50 Hz)

Emissivity

0.95 ,+0.15

Power Consumption

500 Watt

Display

LCD, °C or °F user-selectable

Construction Size (H x W x D)

120(H) x 200(W) x 250(D) mm

Instrument Weight

4Kg

Environmental operating conditions

°C to 50 °C, 0 % to 90 % RH (non-condensing)

Apperture dia

50 mm

Method of Control

Self tunned PID controller

Specifications valid in environmental conditions

5°C …25°C
