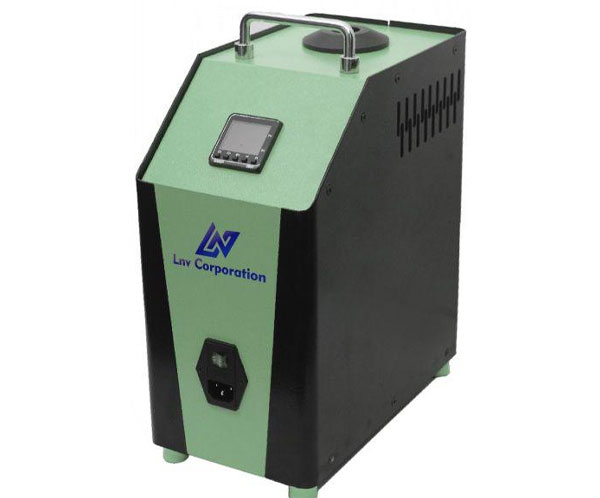

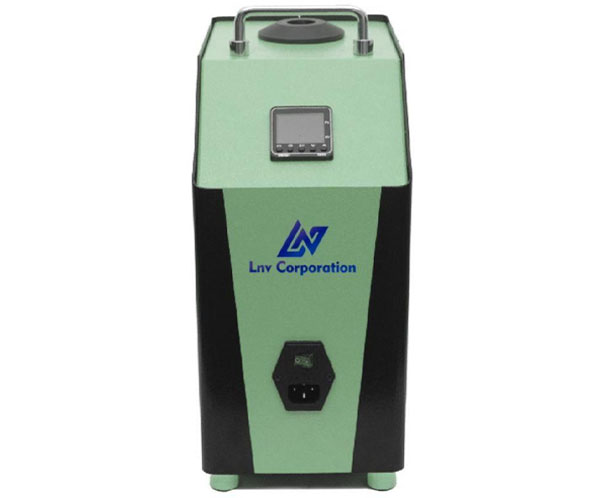

SUL-25X Liquid Temperature Calibrator

Model	SUL-25X
Control Range	-30 to 100 °C @ 25°C
Resolution	0.1 °C
Control Accuracy	£0.1 °C
Thermal Stability	+0.04°C at -30°C, +0.06°C at 0°C, +0.08°C at 100°C
Thermal Uniformity (Radial)	+0.05°C at -30°C, +0.08°C at 0°C, + 0.11°C at 100°C
Stabilization Time/settling time	20 minutes after set point is achieved.

Control Accuracy

£0.1 °C

Thermal Stability

+0.04°C at -30°C, +0.06°C at 0°C, +0.08°C at 100°C

Thermal Uniformity (Radial)

+0.05°C at -30°C, +0.08°C at 0°C, + 0.11°C at 100°C

Stabilization Time/settling time

20 minutes after set point is achieved.

Heating Time

30 Min.( Room Temperature to 100 °C ) @25°C

Cooling Time

40 Min.{( Room Temperature to -30°C) @25°C

Power Supply

230 V(AC), (50 Hz)

Oil/ Liquid Used

5 CST Silicon Oil only

Power Consumption

500 Watt

Display

LCD, °C or °F user-selectable

Construction Size (H x W x D)

320(H) x 165(W) x 290(D) mm

Instrument Weight

5.3 Kg

Environmental operating conditions

0 °C to 50 °C, 0 % to 90 % RH (non-condensing)

Immersion (Well) Depth

140 mm

Insert Length

120 mm

Insert OD

35 mm

Method of Control

Self tunned PID controller

Specifications valid in environmental conditions

5°C … 25°C
